North Configuration Fixed Tilt
Components

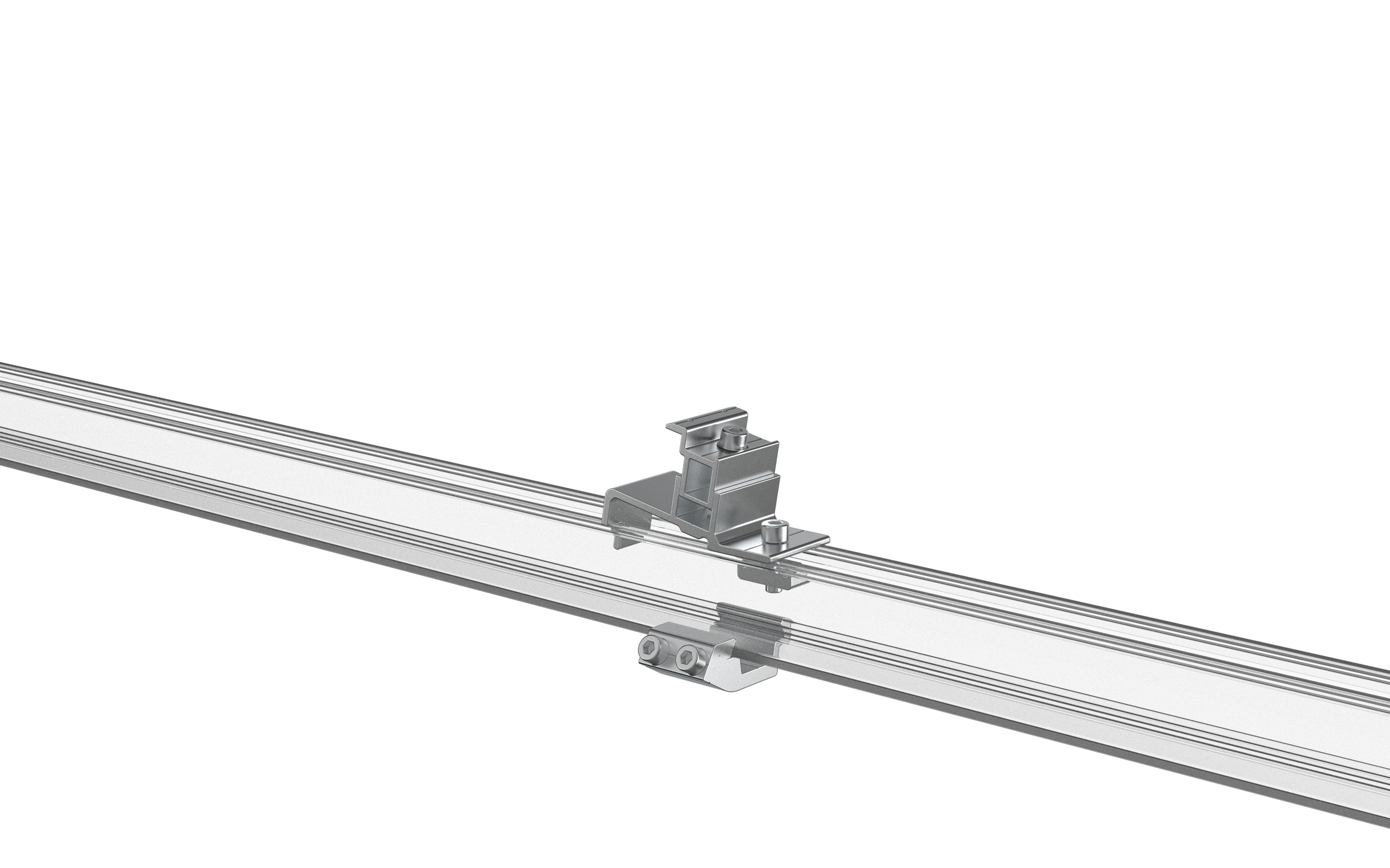

SLSCC3 - Sunlock C-Channel/Rail
SLCF2 - Sunlock Channel Foot
SLCJ3 - Sunlock Channel Joiner

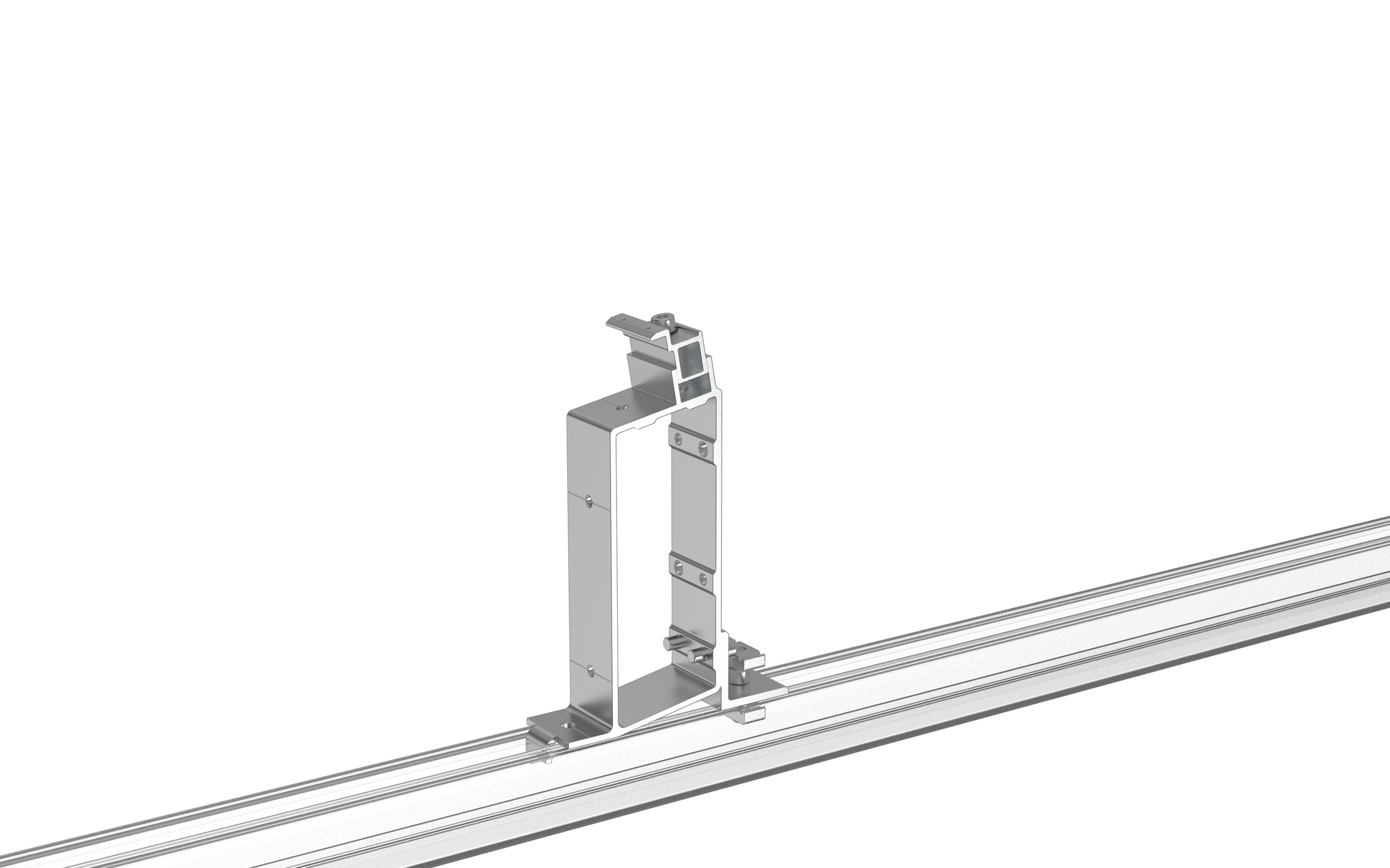

SLCTL2 - Sunlock Fixed Tilt Bracket 10/15deg
SLCET-CT - Sunlock Earth Terminal
SLEC - Sunlock Yellow Cap
Optional
SLCF3 - Sunlock Dual Hole Channel Foot
SLKLK2 - Sunlock Kliplok Bracket
SLLOL2 - Sunlock Longline Bracket
SLTPB2 - Sunlock Trap Bracket
Features
-
available in 10 or 15 deg
Suits panels from ~990-1200mm width
Perfect for North and South facing roofs
Lids are used to cover the string running in the channel between panels.
-
Spring Loaded clamps for ease of install
Built in earthing in the clamps, removing the need for earthing plates
Less moving parts resulting in a reduce install time.
